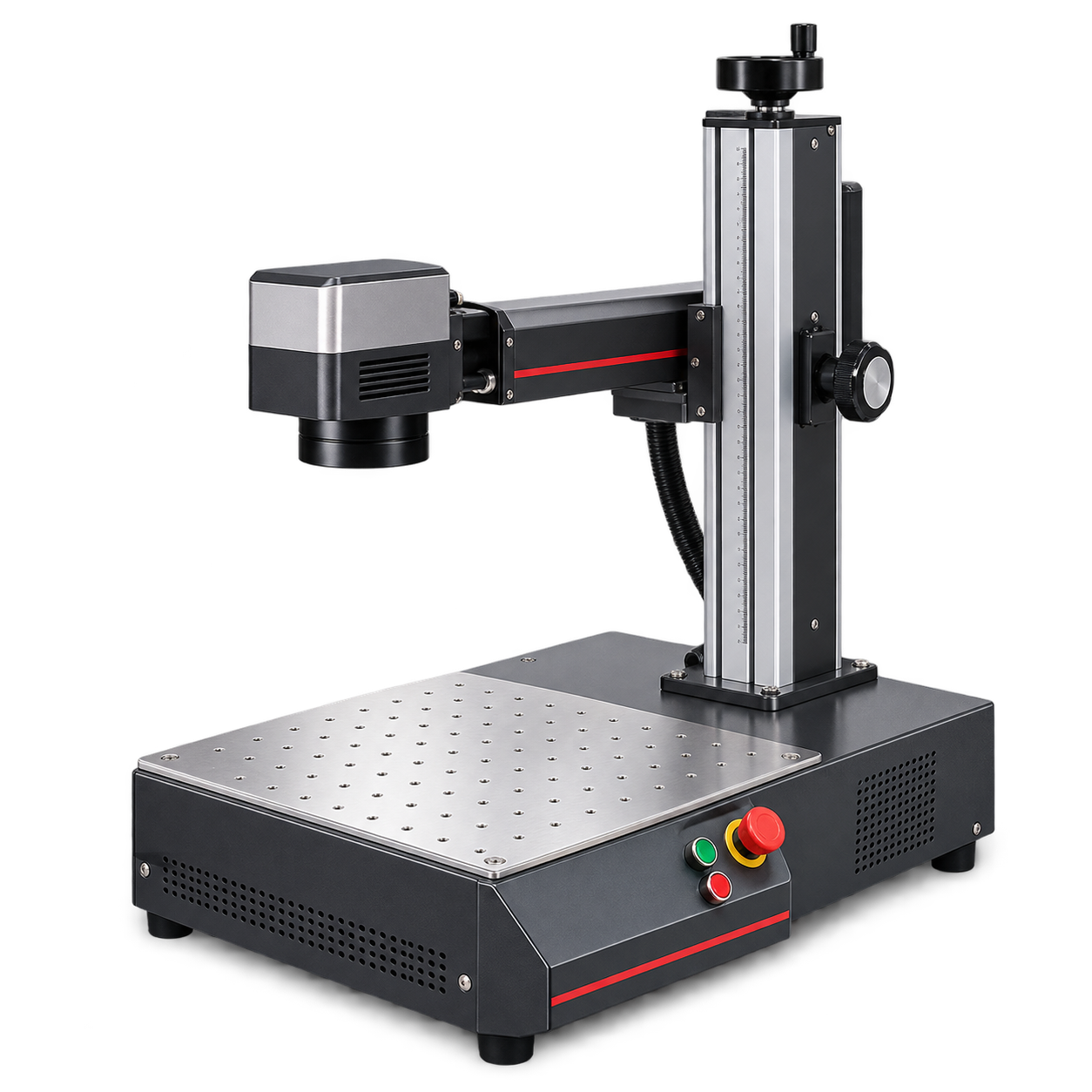

MX MARKING SERIES
MK
30–100WMOPA / Q-SWITCHED
Laser Marking
Make every mark count.
30W, 60W and 100W MOPA or 50W Q-switched fiber sources in a compact desktop marking platform.
- Fiber · 30–100W
- MOPA / Q-switched
- UV 355nm
- CO2 10.6μm
Tekkaform Solutions Inc.APPLICATION ENGINEERING CONFIGURABLE SYSTEMS REMOTE SUPPORTTEKKA LASER · NORTH AMERICA
Request a quote ↗LASER SYSTEMS FOR MODERN PRODUCTION
Built for the part.
Ready for production.
Mark, weld and cut with equipment configured around the material, result and output your business actually needs.
10,000mm/s max. marking speed
0.001mm working accuracy
03Core process families
01Application fit firstMaterial · geometry · target finish
02Sample-led validationReduce uncertainty before configuration
03Clear technical filesBilingual manual and export documentation
04Delivery continuityOperator guidance and remote support
01 SYSTEM PORTFOLIO
Machines built for
the work ahead.
Three focused product families, one application-led approach. Start with the process, compare the capabilities and configure the system around your part.
Talk through your application →

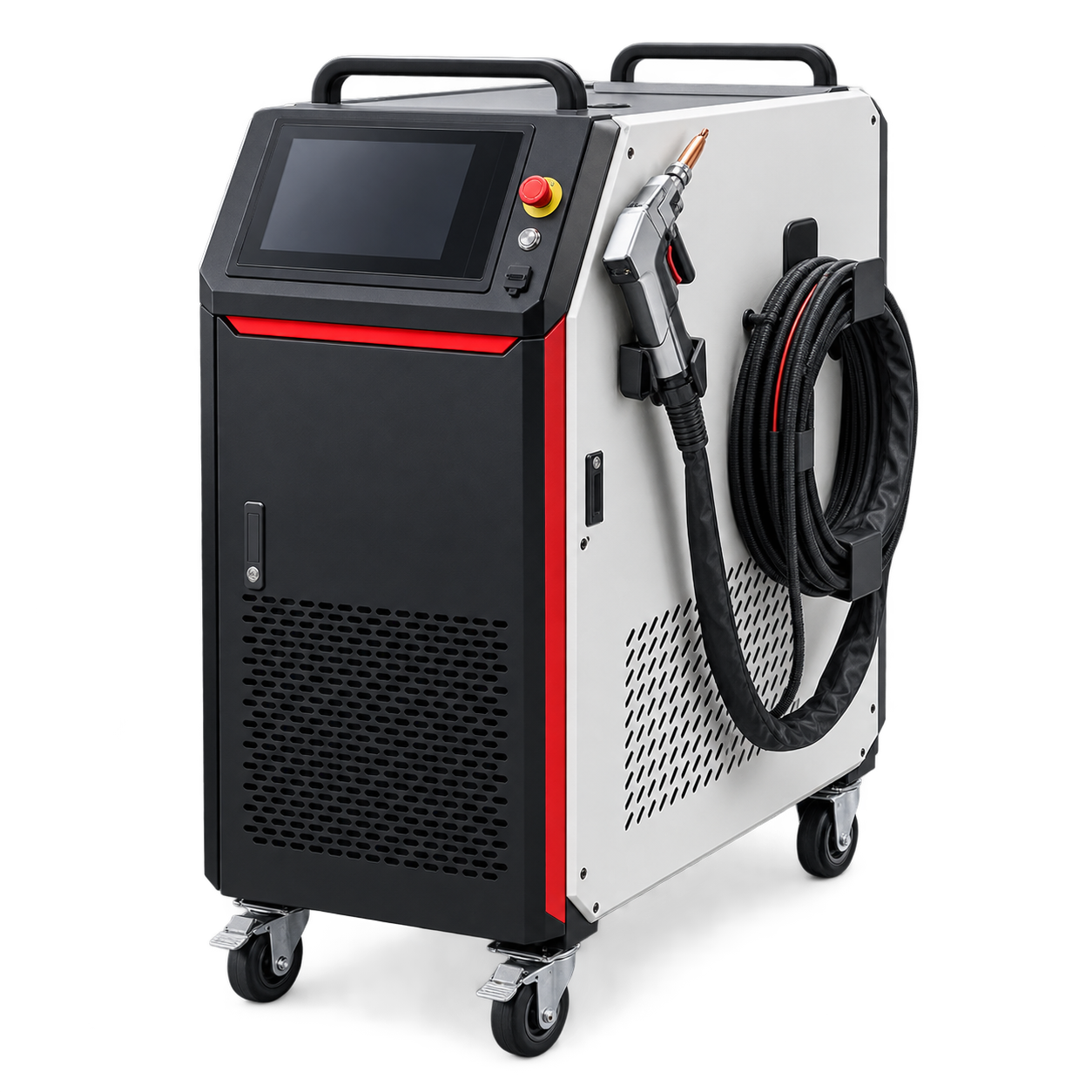

HW WELDING SERIES
WD
1500–3000WWATER-COOLED HANDHELD
Laser Welding
Handheld welding. Your source, your setup.
Water-cooled handheld welding with a Super 23T welding system, Hanli chiller and optional dual wire feeding.
- Super 23T welding system
- Hanli water chiller
- 220V / 380V by model
- Wooden crate included
SC 3000 SINGLE-TABLE
CT
3000WOPEN FIBER PLATFORM
3000W Fiber Cutting
Single-table cutting, fully specified.
An open single-platform 3000W fiber cutting system with BOCHU controls and a matched motion and cooling package.
- 3000W fiber source
- BOCHU bus control
- Aviation aluminum beam
- Dual-gas pneumatic circuit
HW / HANDHELD LASER WELDING
Choose your source.
Price your welder.
Super 23T welding control and Hanli water cooling across the range. Select a source model and see the equipment price in Canadian dollars.
Equipment specifications
- Laser power
- 1500W / 2000W / 3000W
- Welding system
- Super (Chaoqiang) 23T
- Water chiller
- Hanli
- Supply voltage
- 220V / 380V, model-specific
- 1500 / 2000W cabinet
- 1120 × 580 × 1210 mm
- 1500 / 2000W packed size
- 1290 × 580 × 1210 mm
- 3000W dimensions
- Confirm with selected configuration
- Packaging
- Wooden crate included
POWER1500WSUPPLY220VVERSIONStandard
ESTIMATED TOTAL · CADCA$6,402
Base CA$6,402
Wooden crate included
Prices in CAD, rounded to whole dollars. Taxes and freight excluded. Final equipment configuration is confirmed in your quotation.
Compare all 12 source options
| Source model | Power | Supply | Base price (CAD) |
|---|---|---|---|
| 1500W | 220V | CA$6,402 | |
| 2000W | 220V | CA$9,127 | |
| 3000W | 380V | CA$11,481 | |
| 1500W | 220V | CA$6,484 | |
| 2000W | 220V | CA$9,375 | |
| 3000W | 380V | CA$11,481 | |
| 1500W | 220V | CA$6,815 | |
| 2000W | 220V | CA$9,788 | |
| 3000W | 380V | CA$11,894 | |
| 1500W | 220V | CA$5,163 | |
| 2000W | 220V | CA$8,012 | |
| 3000W | 220V | CA$10,738 |

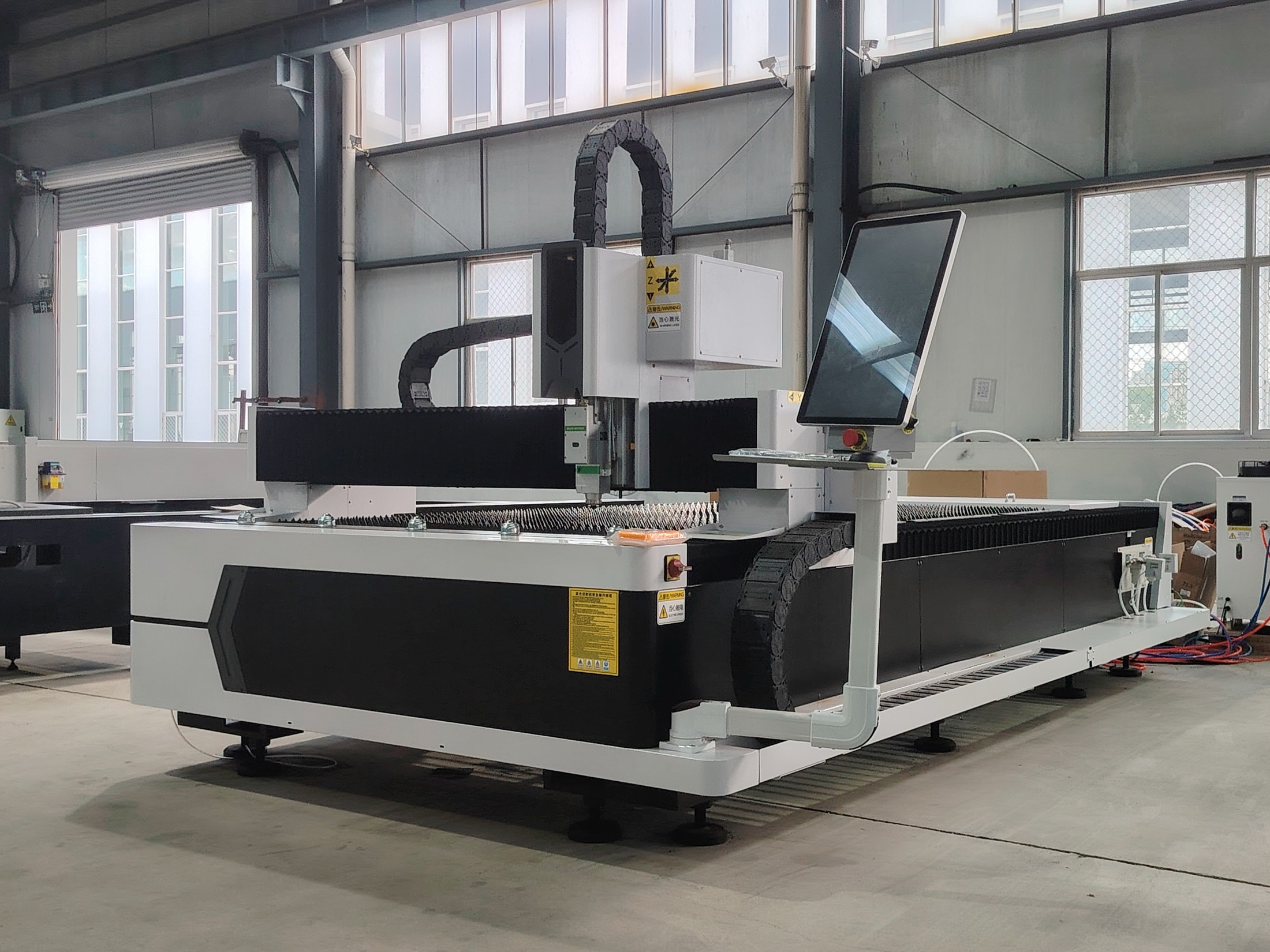

STANDARD 3000W CONFIGURATIONOpen single-table fiber cutting system
FC / 3000W SINGLE-PLATFORM CUTTING
3000W single-platform
fiber cutting system.
The standard configuration pairs a 3000W fiber source with BOCHU control, matched cooling and an open welded-steel platform. Platform size and the 15, 20 or 25 series servo package are confirmed with the required working area.
LASER POWER3000WMAX or Raycus source
MOTION CONTROLBOCHU S9Bus control architecture
GAS CIRCUITS02High and low pressure
WARRANTY1Y / 2YMachine / source and head
COMPONENTBRAND / CONFIGURATION
Laser sourceMAX / Raycus · 3000W fiber source
Control systemBOCHU bus · Controller matched to 3000W
Cutting headBOCHU Black Diamond · Head matched to 3000W
Machine bedWelded steel · Standard single-platform structure
Gantry beamIntegrated aviation aluminum · One-piece aluminum beam
Servo systemBOCHU S9 · Axis package matched to platform series
ReducerTaike Mako · Flange-type precision reducer
Linear guidesPEK · Y axis 30 mm · X axis 20 mm
Gear rackPEK · Module 2 rack
Electrical componentsCHINT · Industrial-grade electrical package
PneumaticsInovance / SMC · High-pressure air or nitrogen plus low-pressure oxygen with proportional valve
Gas-line protectionDual filtration · Low-pressure alarm included
Water chillerTongfei / S&A · Cooling capacity matched to 3000W
15 seriesY1/Y2 1.1 kW · X 1.1 kW · Z 0.4 kW brake
20 seriesY1/Y2 1.7 kW · X 1.1 kW · Z 0.4 kW brake
25 seriesY1/Y2 2.4 kW · X 1.7 kW · Z 0.4 kW brake
- Automatic lubrication with oil delivery lines
- Full steel-strip bed protection and firebrick lining
- Enlarged load-bearing legs with dual anchors
- Burn-resistant metal dust cover and partitioned cable chain
- Dust-protected Z-axis linear module
- One-touch homing, calibration and nozzle cleaning
- Pressure alarm switch and three-color tower light
- Protected gas and water hoses
- Separated high- and low-voltage wiring with shield grounding
- Dust collector
- Voltage stabilizer
- Exhaust fan
- Independent electrical cabinet
Machine warranty: 1 year. Laser source and cutting head warranty: 2 years.
FIBER MARKING1064 nmMetal and selected polymers
UV COLD PROCESS355 nmFine, heat-sensitive marking
CO₂ PROCESS10.6 μmWood, leather, acrylic and paper
SINGLE-TABLE CUTTING3000WOpen fiber cutting platform
02 MARKING CONFIGURATOR
Build the machine.
See the numbers.
Select the source, optics and production accessories. Pricing and technical data update together, so every configuration starts from a clear equipment brief.
BEST FOR
Metals, coated surfaces and selected engineered polymers
01
Laser sourcePower, pulse architecture and source tier
POWER30WLASER MODEMOPACOOLINGBuilt-in air
02
Field lens & working areaSelected optics change field size and energy density
Alternative lenses are calculated as reference add-ons. Replacement-only upgrades may be settled as a price difference in the final quotation.
03
Control architectureComputer, scanner and controller package
04
Production accessoriesAdd only what the application needs
03 ENGINEERING APPROACH
Built around the part.
Not the brochure.
Laser performance lives in the complete process window — material, optics, motion, control, extraction and operator workflow.
01
Application fit
We start with your material, geometry, takt time and finish — then select the laser process.
↗02
Sample validation
Parameter development on representative parts reduces uncertainty before equipment configuration.
↗03
System integration
Optics, motion, controls, extraction and guarding are planned as one production cell.
↗04
Delivery support
Documentation, operator guidance and remote technical support help teams move into production.

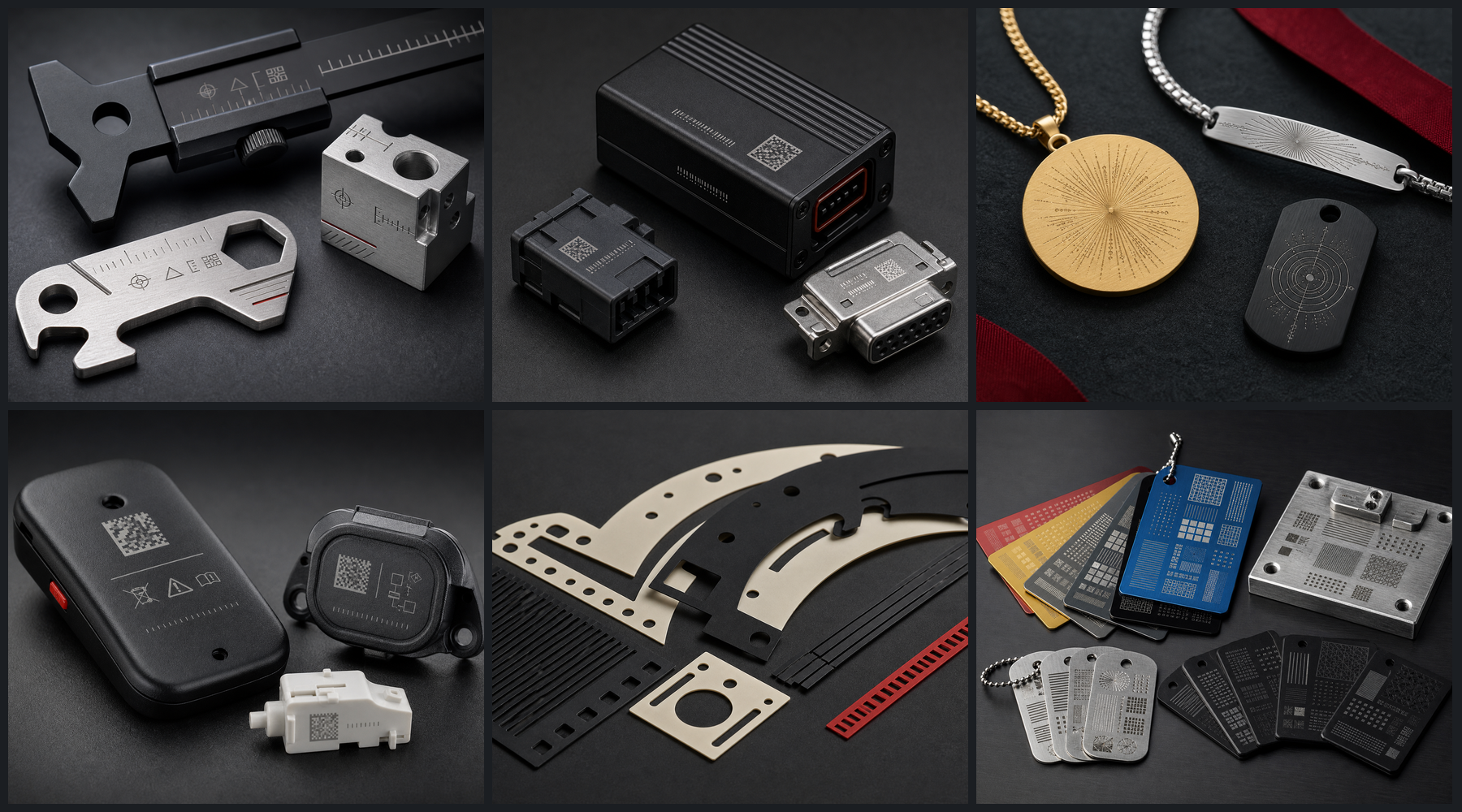

↗04 APPLICATION RANGE
From micro detail
to production scale.
One engineering conversation can cover fine product identification, welded assemblies and cut profiles across a broad material mix.
Repeatable process resultsMaterial-specific parameters · Production-ready recipes
IN PROCESSCompact marking cell
under production validation
under production validation
05 TEKKA LASER
Industrial clarity,
from first sample
to final delivery.
Tekkaform Solutions Inc. supports North American manufacturers with practical laser processing systems, application planning, configurable equipment and responsive sales support.
AApplication-led configuration
BCompact, serviceable platforms
CRemote technical support
06 START A PROJECT
Bring us the part.
We’ll shape the process.
Tell us what you need to mark, weld or cut. We’ll turn the application into a clear system brief for your sales conversation.
